| Input Signal - Είσοδος Σήματος |
SW Ethernet Protocol per EN-408 & EN-508 |

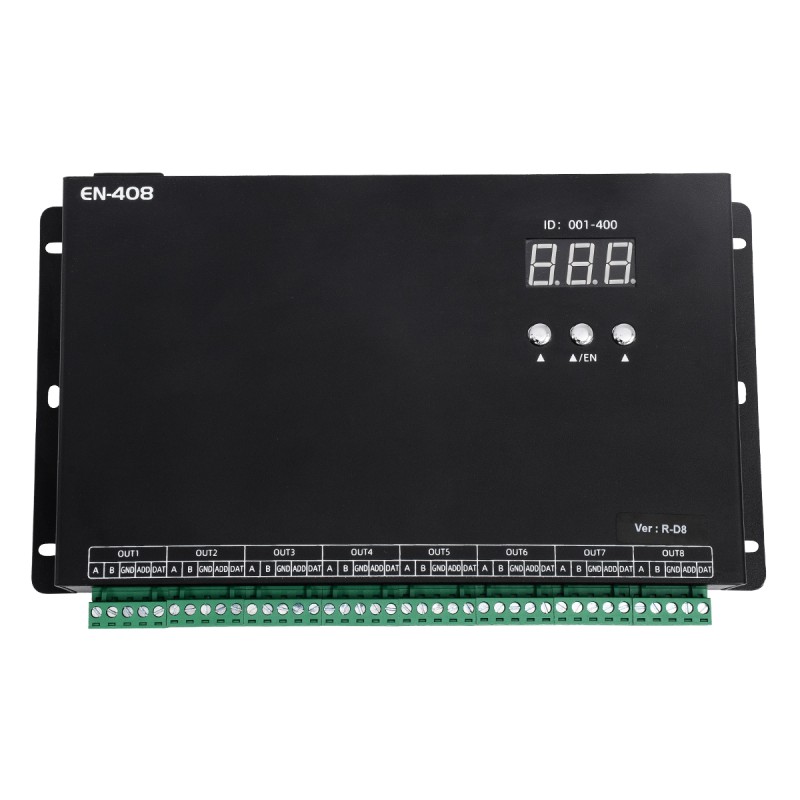

| Output Ports - Θύρες Εξόδου |

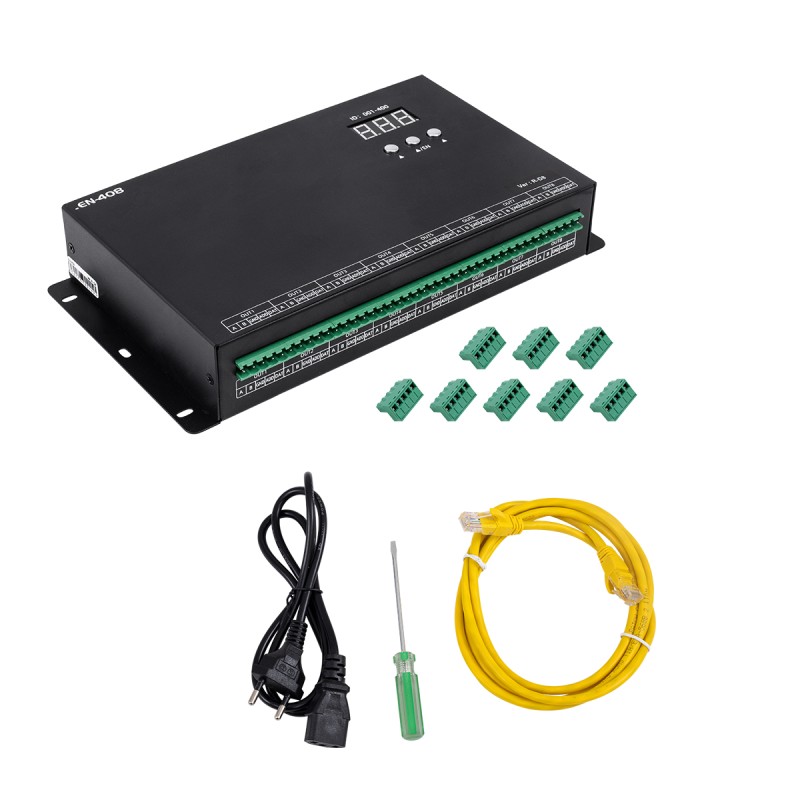

EN-408 & ΕΝ-508 - TTL & RS-485 * 8 ports |
| Maximum Pixel Driven per Channel Controller - Μέγιστα Pixel Οδήγησης ανά Controller Καναλιών |
Single chip: 2880 channels ×8 ports, Single-wire: 3072 channels ×8 ports, Standard DMX512: 512 channels ×8 ports, Extensible DMX: 1024 channels ×8 ports, Break-point resume: 2160 channels ×8 ports, 65536 gray scale: 2160 channels ×8 ports. per EN-408 & EN-508 |
| Network Protocol - Πρωτόκολλο Δικτύου |

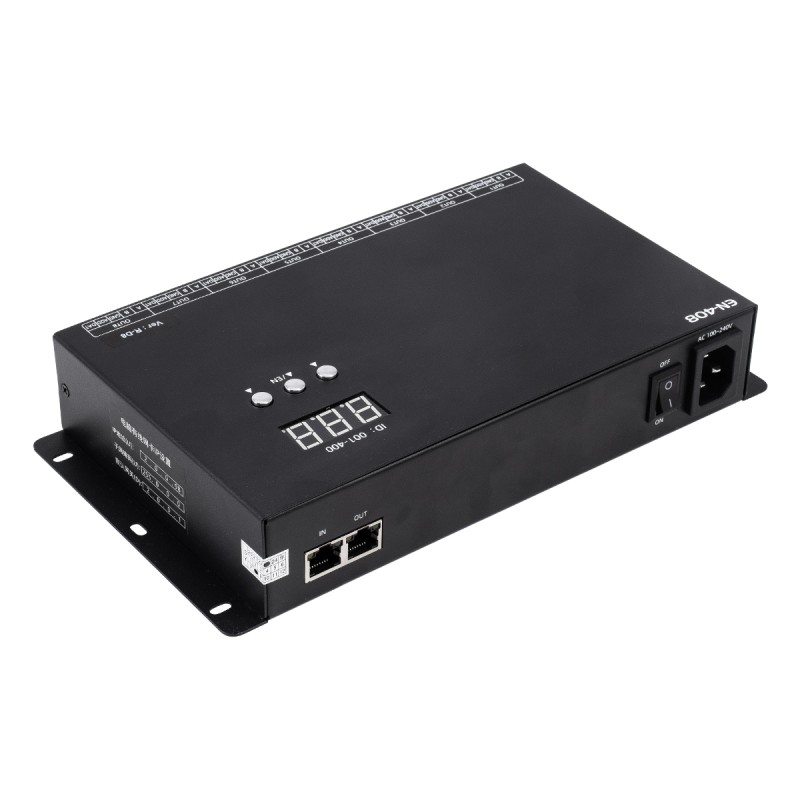

RJ45 Ethernet Interface |
| Output Protocol - Πρωτόκολλο Εξόδου |
RS485 TTL & DMX512 - Please See the User Manual (PDF File) for EN-408 & EN-508 |
| Relative Humidity - Σχετική Υγρασία |
≤ 50% RH |
| Transmission Distance - Απόσταση Μετάδοσης |
Use UTP—unshielded twisted pair cable, distance between the controllers can be 100m. Please add signal amplifier if the distance of SN cascade is over 100m. For further distance of SW Ethernet Protocol, optical fiber converter can be used and the distance can reach 5 km |
| Working Environment - Περιβάλλον Λειτουργίας |
1.Please do not install the controller in magnetic, high pressure, high temperature or seriously wet environment. 2.Please do connect the earth safely in order to reduce risks of fire and damage which cause by short circuit. 3.Please ensure AC100-240V power supply is used, and same polarity is connected between transformer and controller in order to guarantee the proper supply voltage. 4.No waterproof function in the control system, please pay attention on rainproof and waterproof during installing. |
| Connection Instruction - Οδηγίες Συνδεσμολογίας |
Please See the User Manual - Παρακαλώ Δείτε τις Οδηγίες Χρήσης (PDF File) |
| Supported Chips -Υποστηριζόμενα Τσιπ |
Please See the User Manual - Παρακαλώ Δείτε τις Οδηγίες Χρήσης (PDF File) |
| PC Connectivity - Συνδεσιμότητα με Υπολογιστή |
Yes - Ναι |
| PC Software - Λογισμικό Η/Υ |
LED Player - Download Link: |
| SD Card - Κάρτα SD |
Νο - Όχι |
| Synchronous Control |
Yes - Ναι |
| Asynchronous Control |
Yes by SN-510 Master Controller - Ναι με τον SN-510 Κεντρικό Controller |
| Possibility of Color Control - Δυνατότητα Ελένχου Χρωμάτων |
Full Colour - Όλα τα Χρώματα |
