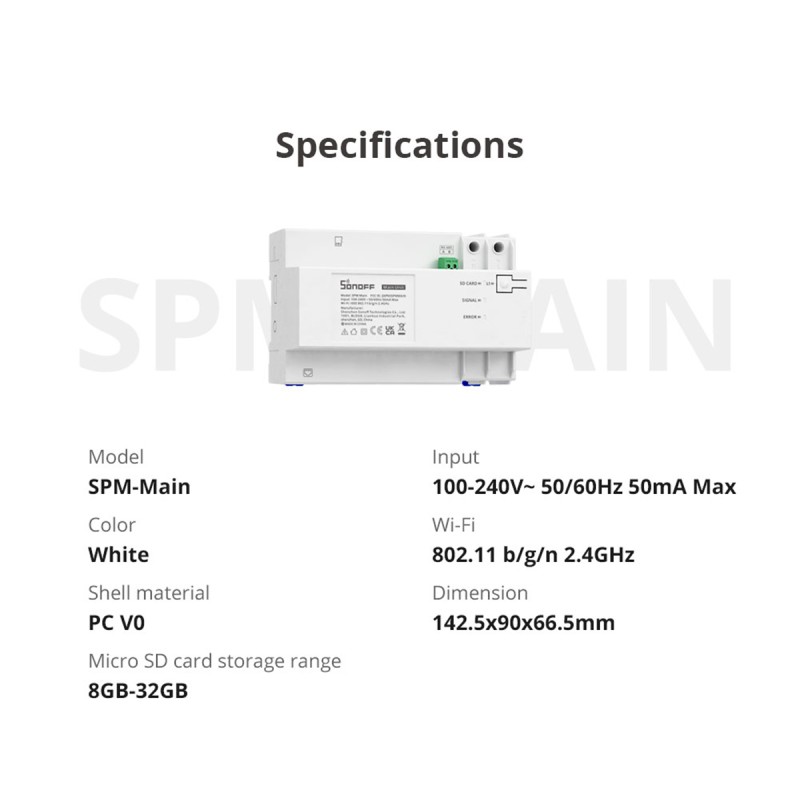

| Brand Name - Εμπορικό Σήμα |
GLOBOSTAR LED LIGHTING AND ACCESSORIES GROUP |
| Series - Σειρά |
SMART HOME |
| Product SKU - Κωδικός Αναγνώρισης Προϊόντος |
80055 |
| Manufacturer Part Number (MPN) - Κωδικός Προϊόντος Κατασκευαστή |
SPM-Main |
| Product Category - Κατηγορία/Τύπος Προϊόντος |
DIY Smart Switches - Έξυπνοι Διακόπτες |
| Product Type - Τύπος Προϊόντος |
Stackable power meter |
| Body Color - Χρώμα Σώματος |
White - Λευκό |
| Enclosure Material - Υλικό περιβλήματος |
PC V0 |
| Protection Rating - Βαθμός Προστασίας |
IP20 |
| Operating systems - Λειτουργικά συστήματα |
Android & iOS |
| Works With - Δουλεύει με |
Amazon Alexa, Google Assistant, Samsung Smarthings |
| Wireless Frequency - Ασύρματη συχνότητα |
IEEE 802.11 b/g/n 2.4GHZ |
| Wireless Standard - Ασύρματο πρότυπο |
IEEE802.11 b/g/n 2.4GHz (2400M-2483.5M) |
| Security Mode - Λειτουργία Ασφαλείας |
WPA/WPA2 |
| Encryption Mode - Λειτουργία κρυπτογράφησης |
WEB/TKIP/AES |
| Working Temperature Range - Εύρος Θερμοκρασίας Λειτουργίας |
-10°C~40°C |
| Input - Τάση Εισόδου |
100-240V AC 50/60Hz |

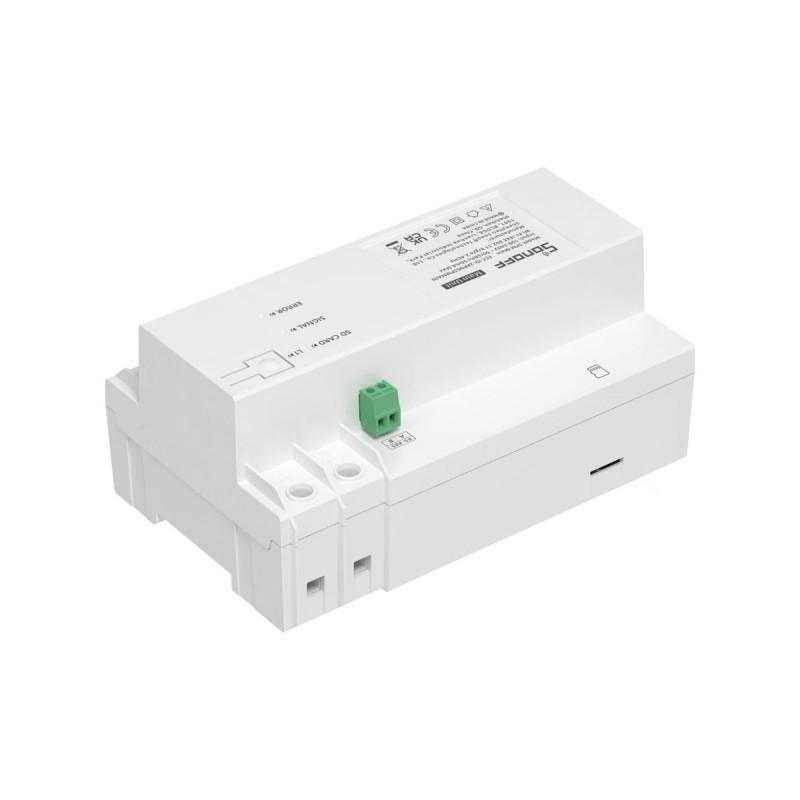

| Micro SD card |
Support (8GB-32GB) |

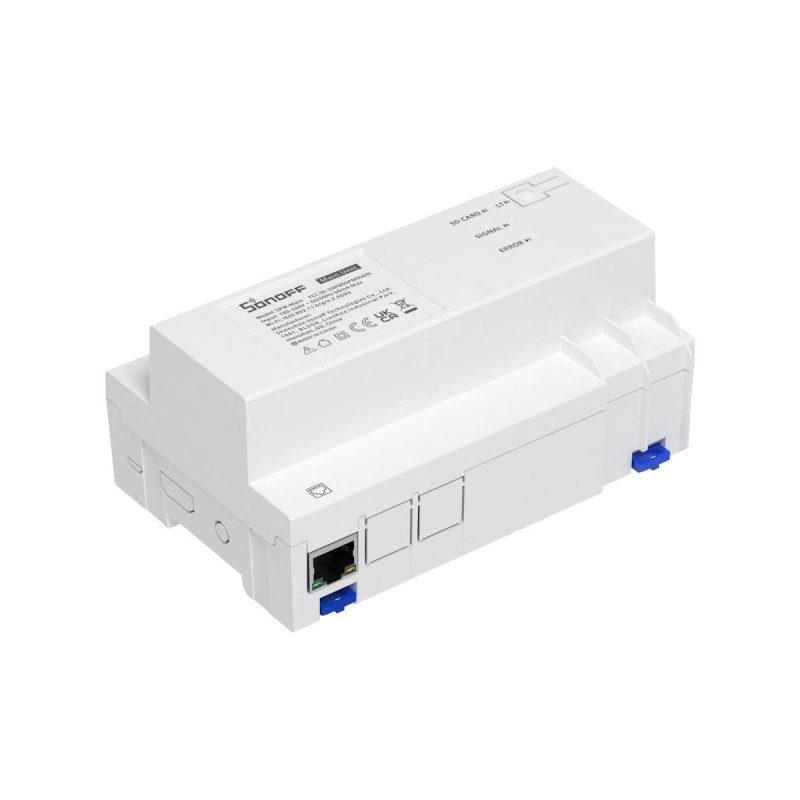

| Ethernet |
Support |
| Communication Protocol of SPM-Main and SPM-4Relay |
RS-485 |
| MCU |
ESP32+GD32F |
| Certificates & Standards - Πιστοποιητικά & Πρότυπα |
CE/UKCA/FCC/ROHS |
| Warranty - Εγγύηση |
1 Year - 1 Χρόνο |
| Functions - Λειτουργίες |

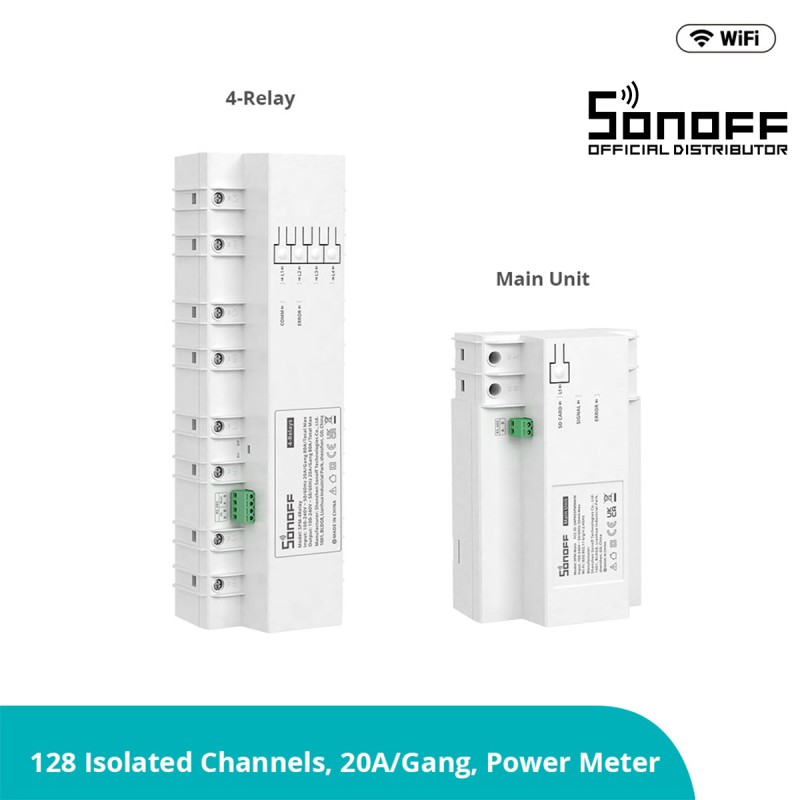

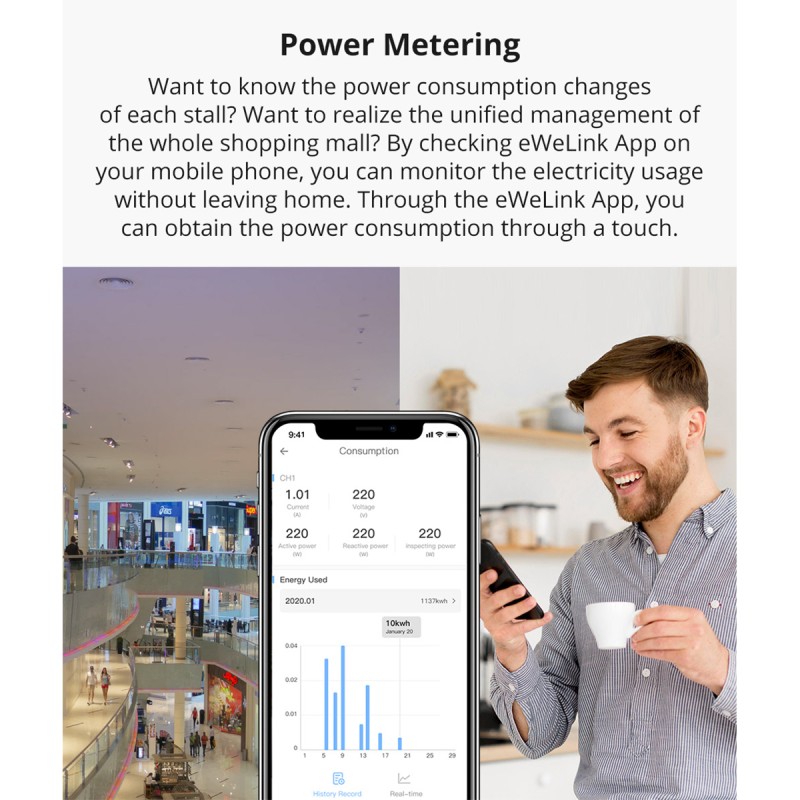

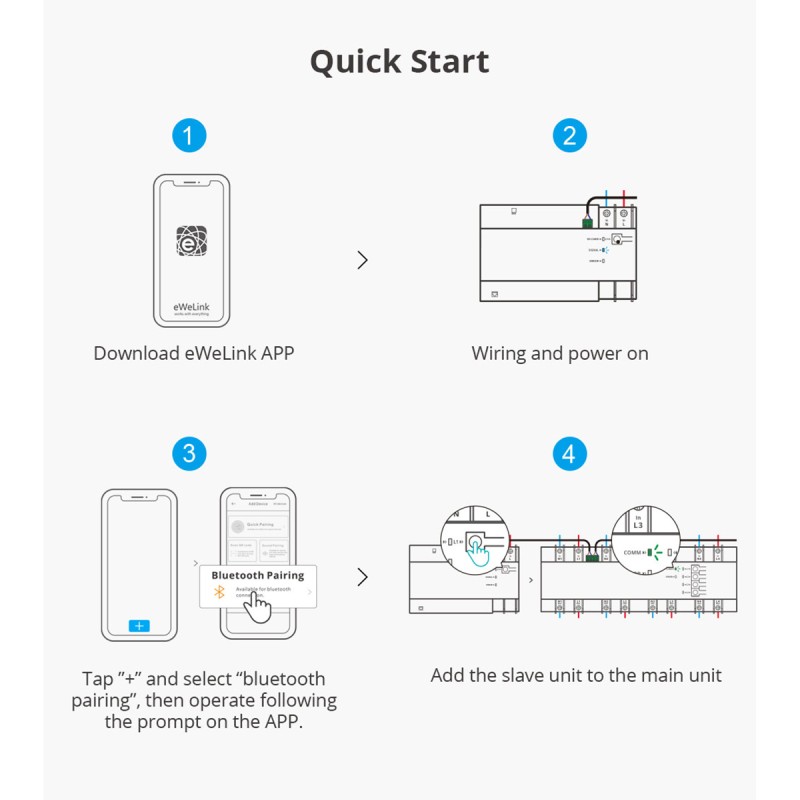

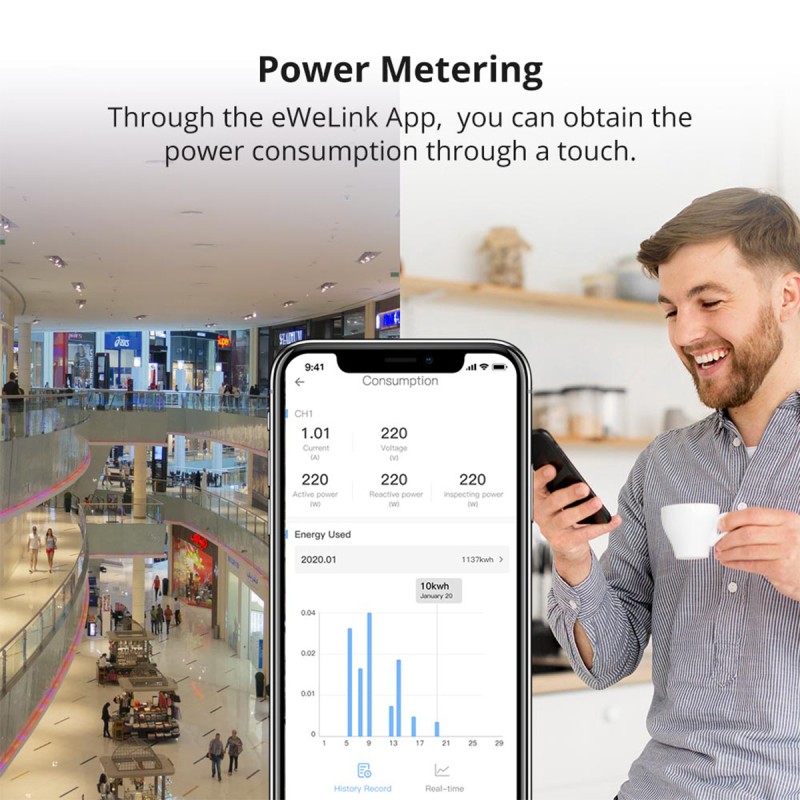

SPM-Main and SPM-4Relay are the main unit and slave unit of Smart Stackable Power Meter, and both are designed to work together. You can control the added slave unit in the App through pairing the main unit with the eWeLink App. Local Power Monitoring/LAN Control/Ethernet Connection/ Support Micro SD Card |
| Extra Informations - Επιπλέον Πληροφορίες |

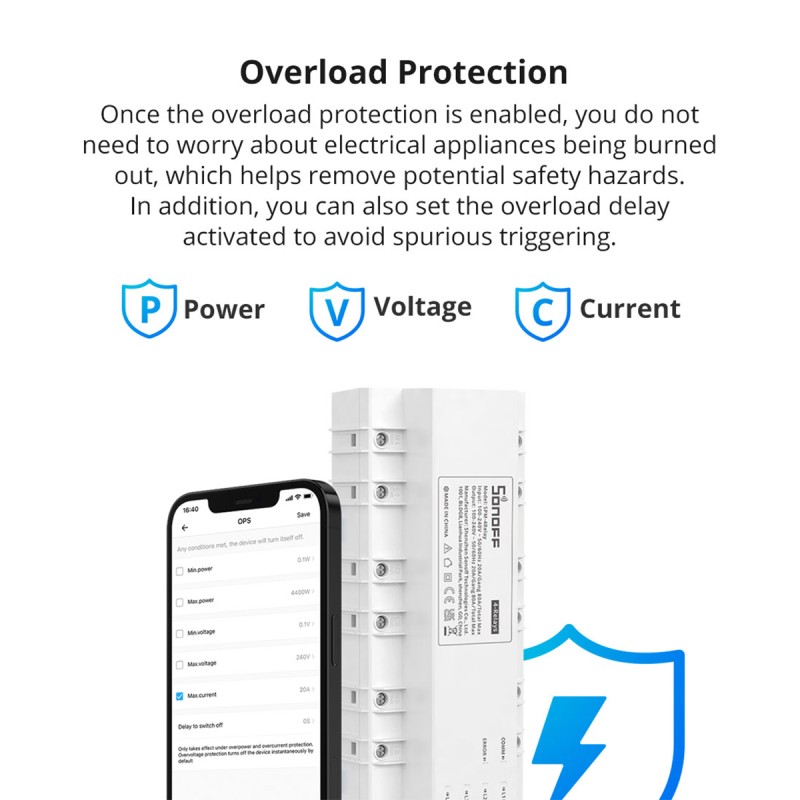

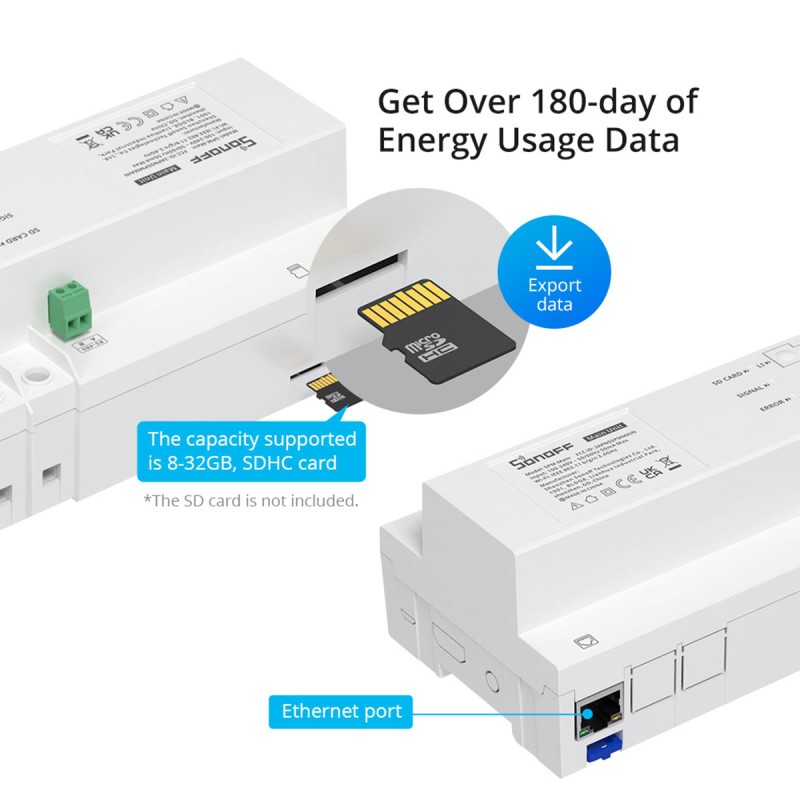

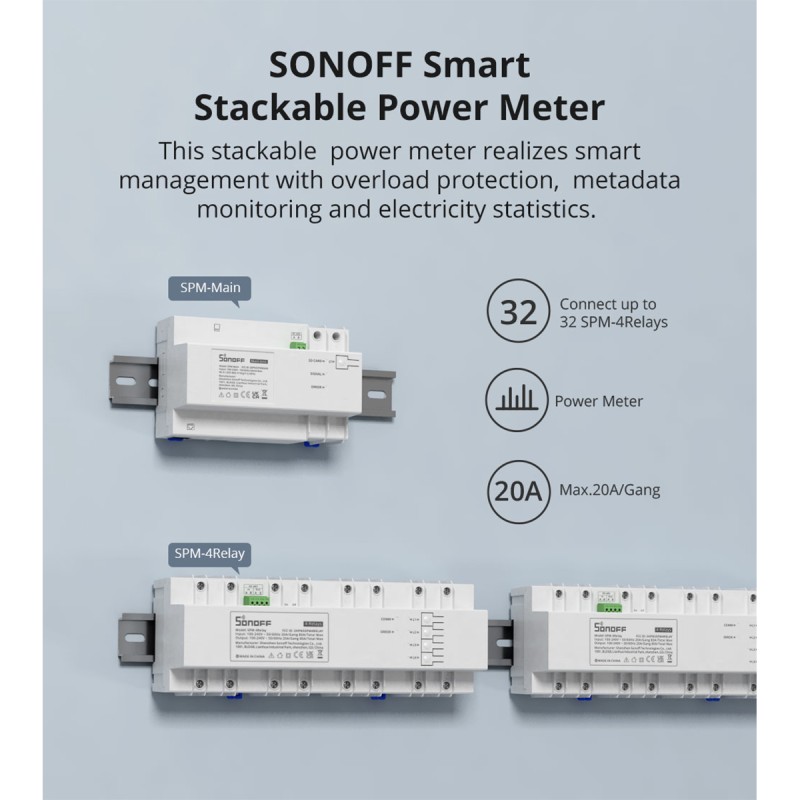

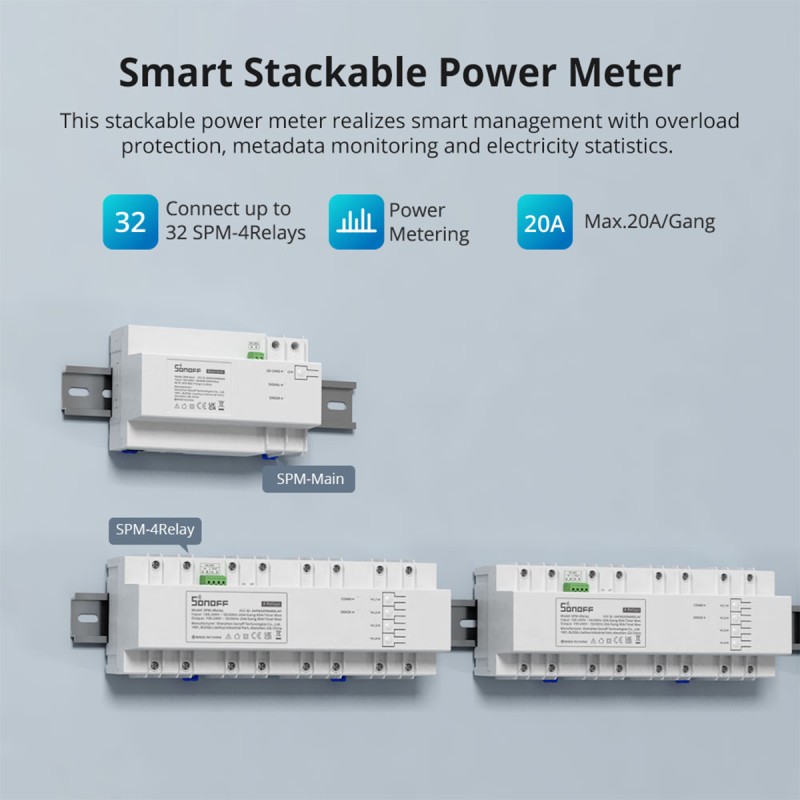

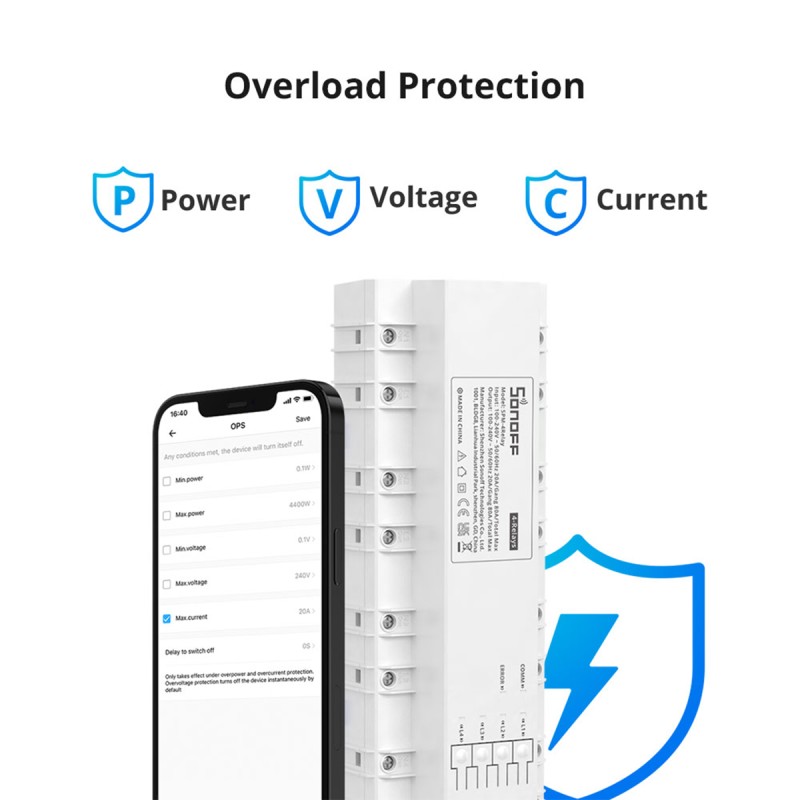

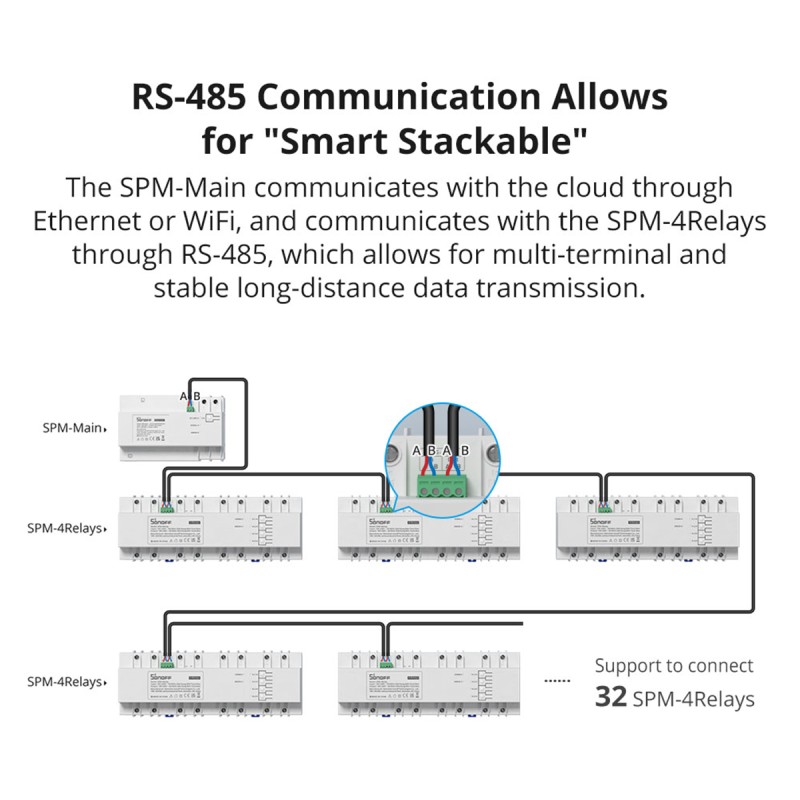

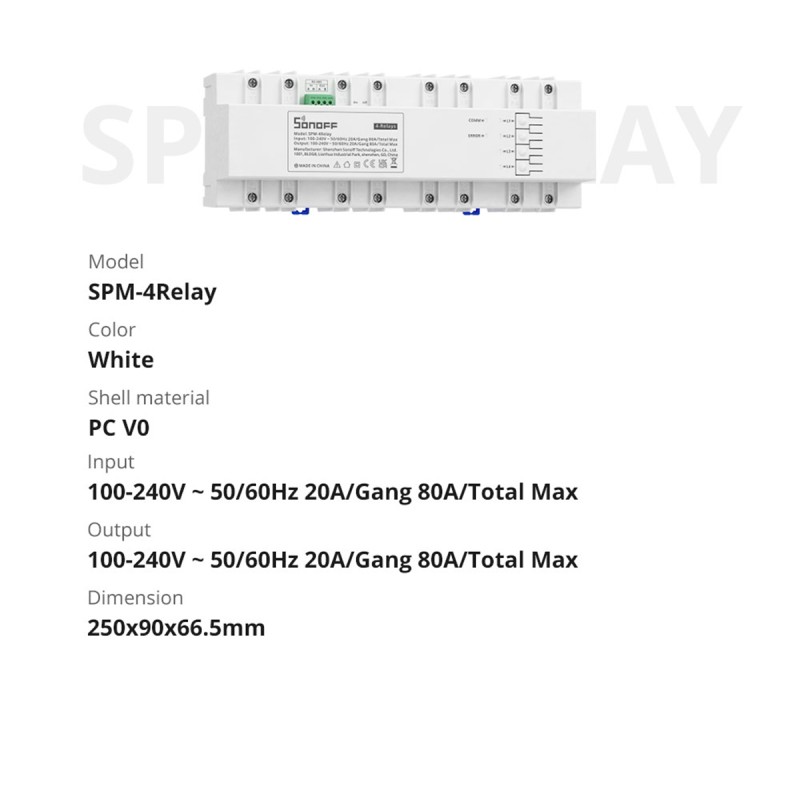

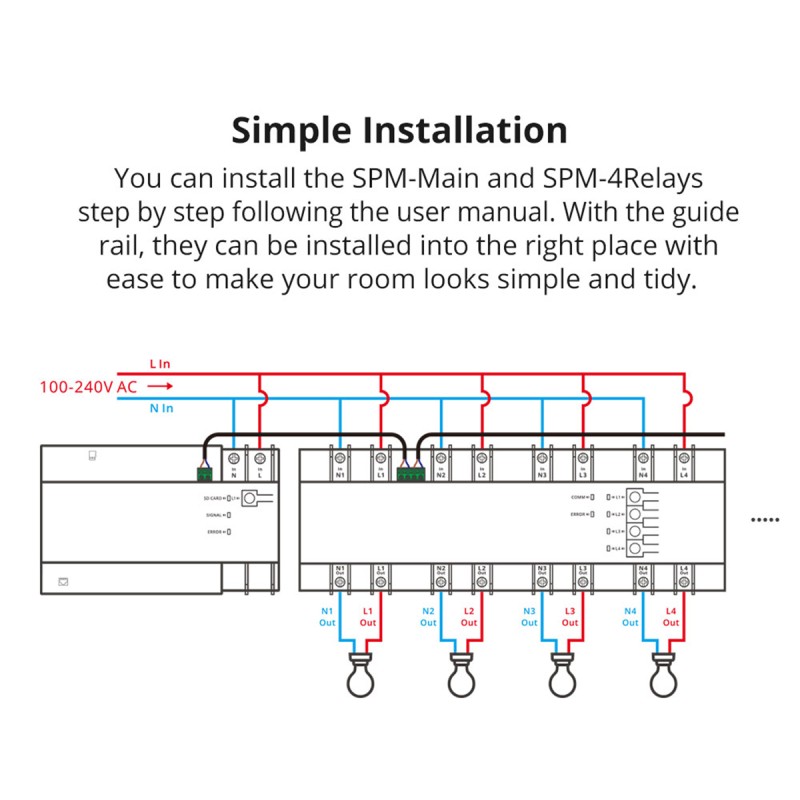

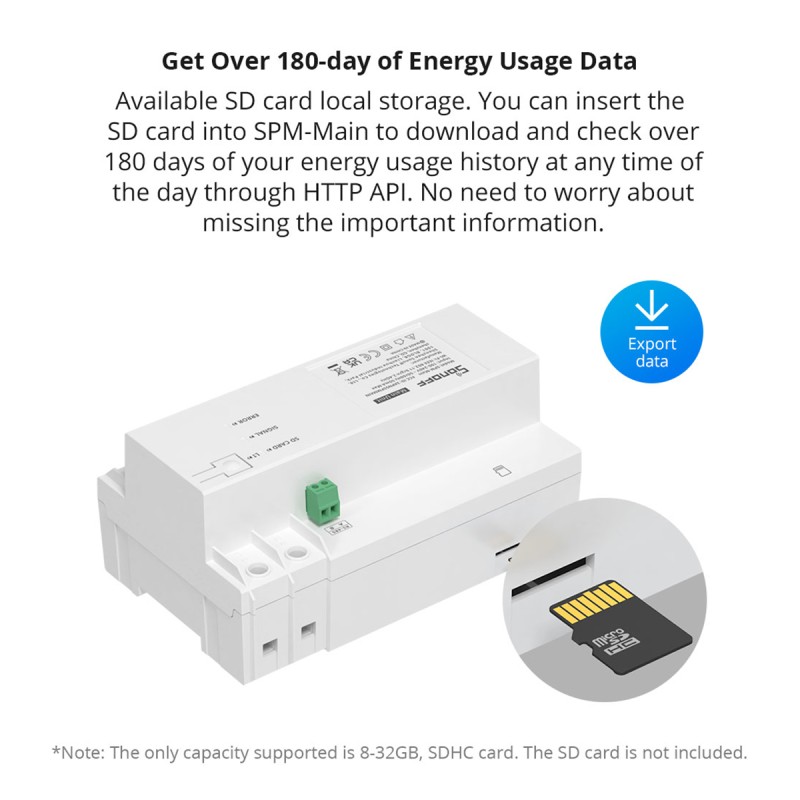

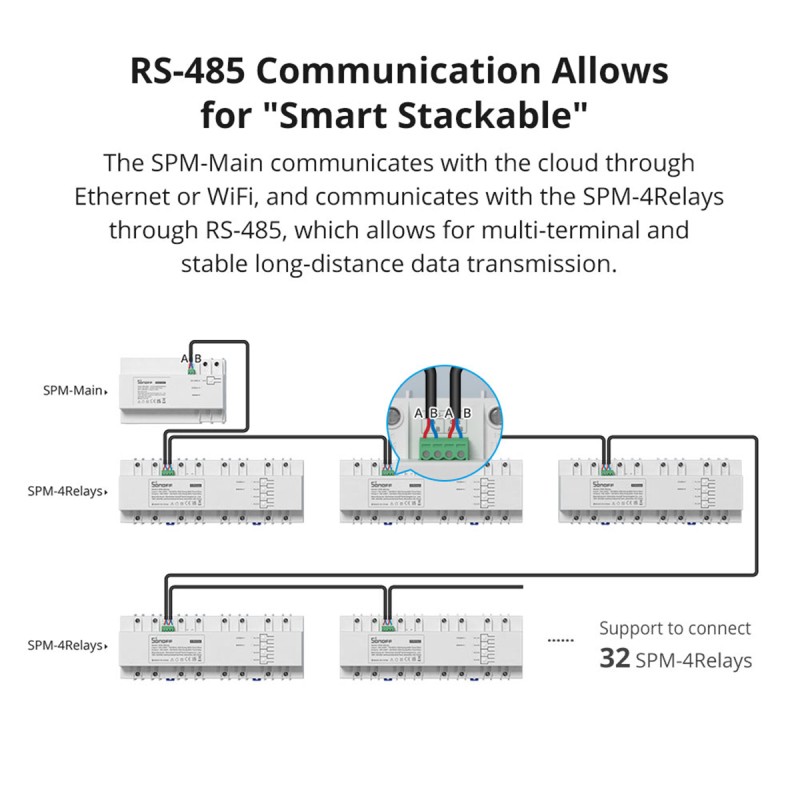

THIS PRODUCT IS THE MAIN UNIT. SPM 4-RELAY units are sold separately. They all fit onto DIN rail of an electric cabinet, and provide smart control and power metering feature with max. performance of 20A per gang, as well as, overload protection for all gangs. It is a high performance professional smart home tool to manage homes, office buildings, industrial buildings or even shopping malls to keep track of residents or tenants power consumption. The SPM Main unit communicates with the eWeLink cloud through Ethernet or Wi-Fi, and communicates with the SPM-4relay modules via RS-485, which allows multi-terminal and stanle long term data transmission. One main unit can work with up to 32 pcs. of 4-relay units, so has a total support of 128 x 20A channel management and power metering. The device has an SD card slot, you may insert an SDHC memory card (not included with the product) to store up to 180 days consumption data and check the data via HTTP API. Data can also be exported. |
